USB c to USB c 3.2 2×2 Cable 20gbps – Specifications, About, and More

Usb c to USB c 3.2 2×2 Cable 20gbps: The Universal Serial Bus (USB) is an industry standard that specifies cables, connections, and protocols for interfacing (connecting) computers, peripherals, and other computers, as well as for connection, communication, and power supply. Please read this full article to get more information

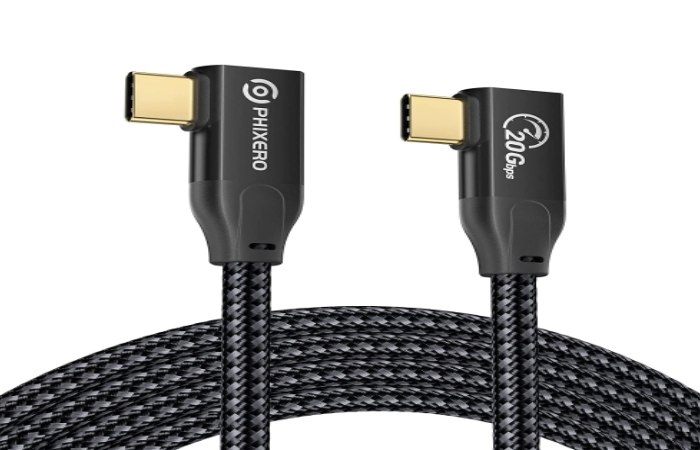

USB c to USB c 3.2 2×2 Cable 20gbps

USB Type-C connectors offer various improvements over USB Type-A, including multi-lane operation capability and reversible connector with no ‘up or down’ orientation.

So, here there are 14 different connector types for USB gear, making USB-C the newest and only one that isn’t already outdated.

Product specifications

Specifications for this family of products

About

• The USB C to USB C 3.2 Gen 2 cable offers SuperSpeed 20Gbps data transfer and fast charging up to 100W PD/QC simultaneously.
• Supports audio, 4K@60Hz video signal for video output, and USB C monitor connection.
• Thunderbolt 3/4 port support enables the output of 4K (60 Hz, 3840 x 2160) video from USB C laptops to displays or monitors with the same connector, including LG 4K, Samsung, HP EliteDisplay,
• Dell USB-C Monitors, and more. (Note: Devices with USB C ports that support DP Alt mode can use the video capability.)
• Long life and tangle-free performance are provided by nylon braided cable with strengthened joints.
• The cable is reliable and resilient thanks to its strain-relief design and robust aluminum shield.
• Compatible with variety of devices, including the MacBook 2016/2017/2018, MacBook Air 2018/2019.
• MacBook Pro 13-inch/15-inch/16-inch, iPad Pro 12.9-inch/11-inch, Google Pixel XL/2/2XL/3/3XL/3a/3a XL.
• Samsung Galaxy S21/S21+/S21 Ultra/Note 10 Plus/A80, Nexus 6P 5X, and more.
• what you receive Use Bean USB-C to USB-C 3.2 Gen2 Cable, 2-Pack 0.6ft.

The USB Standards List

There have been several significant USB standards, with USB4 2.0 being the most recent version:

USB4 2.0: This version of USB 4 was introduced in September 2022 and supported 80 Gbps (81,920 Mbps).

USB4: Founded on the Thunderbolt 3 specification, USB4 ropes 40 Gbps (40,960 Mbps).

USB 3.2 Gen 2×2: Also mentioned as USB 3.2, devices that obey its specifications may transfer data at 20 Gbps (20,480 Mbps) or Superspeed+ USB dual-lane.

USB 3.2 Gen 2: Former as USB 3.1, compatible devices can direct and obtain information at 10 Gbps (10,240 Mbps), otherwise “Superspeed+.”

[USB] 3.2 Gen 1: Before being called USB 3.0, acquiescent hardware can reach a maximum broadcast rate of 5 Gbps (5,120 Mbps), called SuperSpeed USB.

USB 2.0: High-Speed USB, or USB 2.0-compliant devices, have a maximum transmission speed of 480 Mbps.

USB 1.1: Also known as Full Speed USB, USB 1.1 devices have a maximum transfer speed of 12 Mbps.

Most USB cables and devices are still USB 2.0 compatible, while more and more are moving to USB 3.0.

How fast is USB 3.2 compared to USB-C?

USB Type-C and USB 3.1, USB 3.2, USB4 and USB4 V2. Both USB Type-A and USB Type-C connector use to facilitate 5 Gbps and 10 Gbps (USB 3.2 Gen 1 and Gen 2) connection, and USB Type-C also used to reduce 20 Gbps (USB 3.2 Gen 2×2), 40 Gbps (USB4), and 80 Gbps (USB4 V2) connections.

USB-C 1 connector

A USB-C connector has four pair of metal pin functioning as “lanes” transfer and receive data. USB 3.2 Gen 1 (5Gbp) and USB 3.2 Gen 2 (10Gbp) use one TX lane (transmit) and one RX lane (receive), base on positioning of connector. USB 3.2 Gen 2×2 take advantage of all four lane to achieve up to theoretical 20Gbps transfer rate.

Transfer speed

USB 3.2 Gen 2×2 (20 Gbps) 2X faster it predecessor, USB 3.2 Gen 2 (10 Gbps).

Figure 1 show transfer rate test result for different types of data transfer. The drive tested XS2000 2TB portable SSD drive from Kingston.

An increasing number of host device with USB 3.2 Gen 2×2 support released and XS2000 aims to leverage these host with its USB 3.2 Gen 2×2 controller. The technology and transfer rate support by  USB Type-C connector.  Figure 2 include table showing XS2000 benchmarks in all the supported USB technology.

USB C to USB C 3.2 Cable 1.65FT, 100W & 20Gbps USB 3.2 Gen 2X2 Cable, 4K@60Hz Video Cord with E-Marker for Thunderbolt 3/4, Oculus Quest, iMac, MacBook, Dell XPS, iPad Pro, Galaxy S21, Switch etc

Product Details

100W Fast Charging: Compliant with USB 3.2 Gen 2×2 standard, build-in E-Marker smart chip, make this USB C to USB C cable solid enough to support max 5A current 100W power through, that’s 58% faster than with 60W charger and cable. If you’re in hurry, this cable is perfect charging option.

20Gbps Data Transfer: The superspeed++ cable support up to 20Gbps data transfer speed, which twice speed of USB 3.1, transferring an HD movie in just second. Note: Device require USB 3.2 function when using 20Gbps transfer speed, such as Thunderbolt 3 External SSD Hard Drive HDD.

4K Video & Audio Output: The USB C 3.2 charging cable double as video cable, support video output to 4K@60Hz and 2K@165Hz, allowing the MacBook to connect to the second monitor to output 4K video. (Note: The video function work for those devices USB C port supports DP Alt Mode.)

Enhanced Durability: Designed with advanced E-Marker chip in each connector for greater charging stability and higher efficiency. Improved 3D aluminum connector and exclusive laser welding technology ensure the metal part won’t break. You do not need to worry about this cable quality at all.

Wide Compatibility: Compatible with latest MacBook, iPad Pro 12.9” /11”, Google Pixel XL/2/2XL/3/3XL/3a/3a XL, Pixelbook, Samsung Chromebook Pro, Samsung Galaxy S21/ S21+/ S21 Ultra/ Note 10/ Note 10 Plus/ A80, Nintendo Switch, LG, Nexus 6P 5X and other newly launched USB-C smartphone, tablet and laptop.

Conclusion

Dell USB-C Monitors, and more. (Note: Devices with USB C ports that support DP Alt mode can use the video capability.)

The cable is reliable and resilient thanks to its strain-relief design and robust aluminum shield. Compatible with variety of devices, including the MacBook 2016/2017/2018, MacBook Air 2018/2019. It has four pair of metal pin functioning as “lanes” transfer and receive data.

An increasing number of host device with USB 3.2 Gen 2×2 support released and XS2000 aims to leverage these host with its USB 3.2 Gen 2×2 controller. The technology and transfer rate support by  USB Type-C connector.
